Cup Head CD Weld Pins With Insulated Base For Duct Liner Insulation

Product name : Cup-head CD weld pins

Material : Galvanized steel

Pin Diameter : 2mm,2.7mm,3.0mm,3.4mm,etc

Cup diameter : 30 mm(1.18'')

Pin Length : 15 mm,19 mm, 25 mm,38 mm, 63 mm, 80 mm, 100 mm etc

Usage : Duct liner insulation

MOQ : 10000 pcs

Packing : Carton then pallet or packing as request

Brand Name : HUIHAO CUSTOM

Model Number : Cup Head Weld Pins

Certification : ISO

Place of Origin : China

MOQ : Negotiable

Price : USD0.03-0.10/PC

Payment Terms : L/C,T/T,

Supply Ability : 5,000,000pcs per 30 days

Delivery Time : 8-15 work days

Packaging Details : 2000 pcs / 3000 pcs/ 5000 pcs per carton or according to requirement.

Contact Now

Cup Head CD Weld Pins With Insulated Base For Duct Liner Insulation
Product Specifications
Attribute Value
Product name Cup-head CD weld pins
Material Galvanized steel
Pin Diameter 2mm, 2.7mm, 3.0mm, 3.4mm, etc
Cup diameter 30 mm (1.18'')
Pin Length 15 mm, 19 mm, 25 mm, 38 mm, 63 mm, 80 mm, 100 mm etc
Usage Duct liner insulation
MOQ 10000 pcs
Packing Carton then pallet or packing as request
Product Description

HUIHAO Cup head CD Weld Pins are manufactured to attach insulation layers to metal surface, involved a lot in HVAC duct lining, air ducts, shipbuilding and maintenance, and various removable or reusable insulation covers and jackets on heating equipments.

  • Name: Cup-head CD weld pin, Cup head insulation pin, cup head pin
  • Material: Galvanized steel pin
  • Head: 30 mm (1.18'') Beveled edge washer
  • Head Base: 0.4-0.5mm
  • Pin Diameter: 12Ga (2.7mm) in common, also could be 14Ga, 11Ga, 10 Ga, etc
  • Pin Length: 3/8''-12'', length could be customized
  • Head type: without insulated, with insulated paper, with insulated film
Cup Head Types
Cup Head CD Weld Pins With Insulated Base For Duct Liner Insulation Cup Head CD Weld Pins With Insulated Base For Duct Liner Insulation
Detailed Specifications
Material Length Pin Diameter Head Diameter
Galvanized Steel 3/8" 12Ga (2.7mm) 1.18''
Galvanized Steel 1/2" 12Ga (2.7mm) 1.18''
Galvanized Steel 3/4" 12Ga (2.7mm) 1.18''
Galvanized Steel 7/8" 12Ga (2.7mm) 1.18''
Galvanized Steel 1" 12Ga (2.7mm) 1.18''
Galvanized Steel 1-1/8" 12Ga (2.7mm) 1.18''
Galvanized Steel 1-1/4" 12Ga (2.7mm) 1.18''
Galvanized Steel 1-1/2" 12Ga (2.7mm) 1.18''
Galvanized Steel 1-5/8" 12Ga (2.7mm) 1.18''
Galvanized Steel 1-7/8" 12Ga (2.7mm) 1.18''
Galvanized Steel 2" 12Ga (2.7mm) 1.18''
Galvanized Steel 2-1/8" 12Ga (2.7mm) 1.18''
Galvanized Steel 2-1/4" 12Ga (2.7mm) 1.18''
Galvanized Steel 2-1/2" 12Ga (2.7mm) 1.18''
Galvanized Steel 3" 12Ga (2.7mm) 1.18''
Galvanized Steel 3-1/2" 12Ga (2.7mm) 1.18''
Galvanized Steel 4" 12Ga (2.7mm) 1.18''
Galvanized Steel 4-1/2" 12Ga (2.7mm) 1.18''
Galvanized Steel 5" 12Ga (2.7mm) 1.18''
Galvanized Steel 5-1/2" 12Ga (2.7mm) 1.18''
Galvanized Steel 6" 12Ga (2.7mm) 1.18''
The pins length / pin diameter / head diameter could be customized for big order.
Applications
Cup Head CD Weld Pins With Insulated Base For Duct Liner Insulation

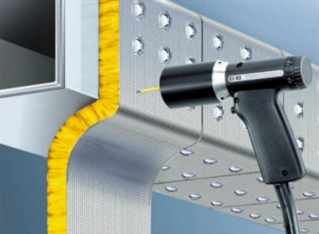

Item: Cup Head Weld Pins

Application: Used for fastening insulation material on metal surface

Step:

  1. Hanging the insulation
  2. Directly weld the weld pins through the insulation materials
Recommended for Pin length before welding
1/2" insulation (all densities) 12.67mm
1" insulation (1-1/2"ib density) 17.63mm
1" foam 25.55mm
1" insulation (3ib densities) 23.72mm
1-1/2" insulation (all densities) 28.42mm
2" insulation (1-1/2"-2" ib density) 37.95mm
2" insulation (3ib densities) 48.77mm
3" insulation (all densities) 69.85mm
4" insulation (all densities) 95.00mm
Packaging Options
  • Packing with Boxes and Pallets
  • Pin quantity in each box is via the pin length
  • Box could print or stick the labels as request for big order
  • The pin could also be packed with plastic bucket for safety
Cup Head CD Weld Pins With Insulated Base For Duct Liner Insulation
Certifications & Quality Assurance
Cup Head CD Weld Pins With Insulated Base For Duct Liner Insulation
1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?

Yes, the material and the size all could be customized.

3. Can I get samples?

Yes, we have free samples for you to check the quality.

4. How do you control and ensure product quality?
  1. Confirm with you every details before quoting
  2. Before production, we will reconfirm all the details again
  3. During production, we strictly implement "IATF 16949 Quality Management System" standard
  4. We will send you videos and pictures during the production and shipment process
5. What's your advantages?

Cooperate with us, we can ensure:

  1. Competitive price: we sale what we manufacture
  2. On-time delivery: we have the auto-production line to ensure the on-time delivery
  3. Excellent quality: we have rich experience, our products are in line with international standard
  4. Good after-sale service: we offer good after-sale service for each order
Note: Welcome to email me (david@huihaomesh.com) for better price or samples
