Perforated Aluminum Architectural Mesh Panels for Grip Strut Grating Platforms
Product Specifications
Material: Aluminum Alloy, GS, SS
Thickness: 2mm, 2.5mm, 3mm
Height: 50mm, 75mm, 100mm
Aperture: 75mm × 30mm
Width: 300mm-800mm
Length: Up to 6000mm
Grip Strut Safety Grating Platforms provide durable, rust-resistant solutions with various material options. Standard mill-galvanized finish resists corrosion for long-lasting surfaces. Available in high-strength aluminum and Types 304/316L stainless steel for maximum corrosion resistance. Black unpainted steel is available for installations requiring hot-dipped galvanized finish after fabrication.
Material Options
- Pre-galvanized carbon steel
- HRPO carbon steel
- 5052-H32 mill finish aluminum
- Stainless steel 304 or 316
Applications
Ideal for working platforms, catwalks, walkways, stair treads, floors, and mezzanines.
Design & Specifications
Standard Specifications
| Diamond Pattern |
Width |
Channel Depth |
Galvanized |
Aluminum |
| 2 Diamonds |
9-1/4" |
2" |
11 Ga., 10 Ga., 9 Ga. |
12 Ga. (.080), 10 Ga. (.100) |
| 3 Diamonds |
13-3/4" |
2" |
11 Ga., 10 Ga., 9 Ga. |
12 Ga. (.080), 10 Ga. (.100) |
| 5 Diamonds |
23-1/4" |
2" |
11 Ga., 10 Ga., 9 Ga. |
12 Ga. (.080), 10 Ga. (.100) |
| 6 Diamonds |
27-3/4" |
2" |
11 Ga., 10 Ga., 9 Ga. |
12 Ga. (.080), 10 Ga. (.100) |
| 8 Diamonds |
36" |
1-1/2" |
11 Ga., 10 Ga., 9 Ga. |
12 Ga. (.080), 10 Ga. (.100) |
Weight Specifications (per meter)
| Material |
Stainless Steel |
Galvanized Steel |
Aluminum Alloy 5754 |
| Height |
50mm |
75mm |
100mm |
50mm |
75mm |
100mm |
50mm |
75mm |
100mm |
| 300mm |
6.2kg |
7.0kg |
7.8kg |
7.7kg |
8.7kg |
9.7kg |
3.1kg |
3.6kg |
4kg |
| 400mm |
7.6kg |
8.4kg |
9.2kg |
9.4kg |
10.4kg |
11.4kg |
3.8kg |
4.2kg |
4.7kg |
| 500mm |
8.9kg |
9.7kg |
10.5kg |
11kg |
12kg |
13kg |
4.5kg |
4.9kg |
5.3kg |
| 600mm |
10.3kg |
11.1kg |
11.9kg |
12.7kg |
13.7kg |
14.7kg |
5.2kg |
5.6kg |
6.0kg |
| 700mm |
11.6kg |
12.4kg |
13.2kg |
14.4kg |
15.4kg |
16.4kg |
5.9kg |
6.3kg |
6.7kg |
| 800mm |
12.9kg |
13.7kg |
14.5kg |
16.1kg |
17.1kg |
18.1kg |
6.6kg |
7.0kg |
7.4kg |
Installation Details

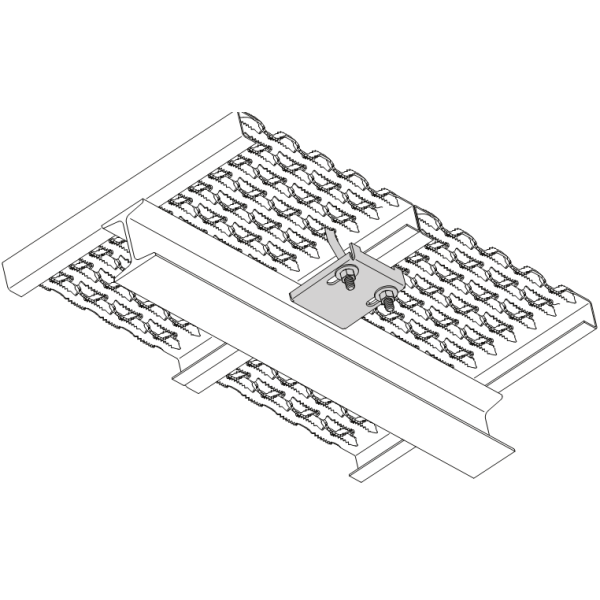

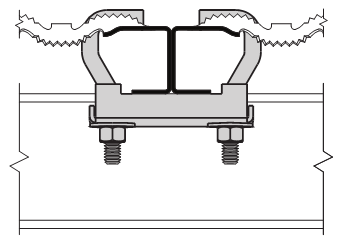

Clamp system prevents grating from shifting on supports and holds pieces together with or without clearance between panels. All bolts are positioned below the top surface of grating, with no need to drill holes in supporting members. Assembly includes anchor plate, 2 J-bolts, nuts and washers, all electro zinc plated. Standard finish is hot-dipped galvanized before fabrication.
